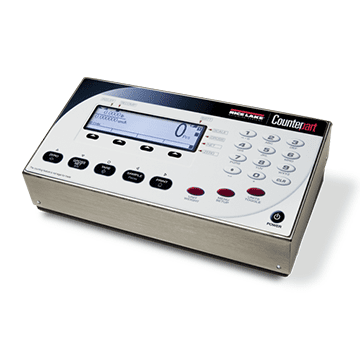

Counterpart® Configurable Counting Indicator
Counterpart® Configurable Counting Indicator 1
Counterpart® Configurable Counting Indicator 2
Counterpart® Configurable Counting Indicator 3
Counterpart® Configurable Counting Indicator 5
Counterpart® Configurable Counting Indicator 6
Counterpart® Configurable Counting Indicator
Counterpart® Configurable Counting Indicator 1
Counterpart® Configurable Counting Indicator 2
Counterpart® Configurable Counting Indicator 3
Counterpart® Configurable Counting Indicator 5
Counterpart® Configurable Counting Indicator 6

Counterpart® Configurable Counting Indicator

$14.07 – $2,043.50

  • AC operated (battery operation is optional)
  • LCD graphic transmissive display for indoor viewing
  • Single- or dual-channel models with serial scale input
  • Mix and match platforms with console
  • Four setpoint outputs for counting
  • Two RS-232 ports for connecting peripherals
  • Ethernet TCP/IP
  • Scanner input (RS-232)
  • PC software utility (Revolution®) for setup
  • 150 item memory

Options

  • Wireless LAN
  • Rechargeable battery
  • USB connection for keyboard
  • WeighVault™ software for ID entry, data registers and reports

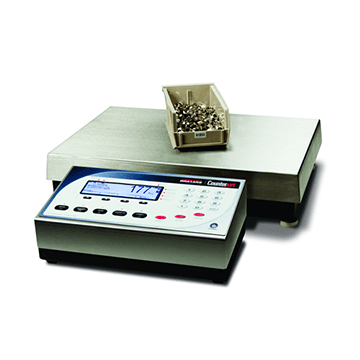

More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device—for parts of every shape and size.

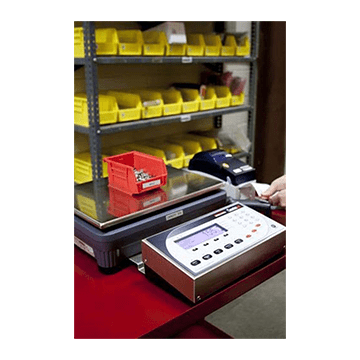

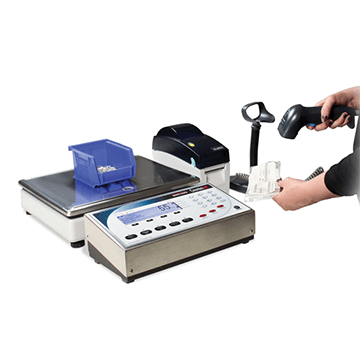

Unlike traditional counting scales, Counterpart uses Rice Lake’s simple configuration method to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.

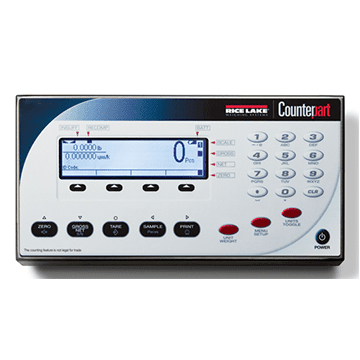

Rice Lake’s new configurable counting indicator does away with equipment learning curve. Users simply follow the keys left to right— zero, tare, and sample. View weight, piece weight, description and quantity all at the same time. And a ten-piece default sample is all that Counterpart ever requires.

While Counterpart was designed for operator simplicity, it also provides the high-end features necessary for better inventory control and record keeping. Onboard Ethernet allows for connection to a PC where WeighVault® software for Counterpart can take your data storage and reporting capabilities to new heights.

Counterpart can be purchased separately for operating one or more scale bases, or as part of a complete scale base and indicator package.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

Counterpart Configurable Counting Indicator Specifications

Power Source:
Input: 100 to 240 VAC, 47 to 63 Hz, 5 watts
U.S. power cord
Output: 9 to 12 V, 1.5 A max

Excitation Voltage:
5 VDC

Analog Signal Input Range:
0 to 4.5 mV/V

Analog Specifications:
Grad minimum: .3 μV/grad
Input sensitivity: 1.5 μV/grad recommended
Zero adjustment range: 0 to 100% or per region settings
A/D conversion rate: 7.5, 15, 30 samples per second
Load cells per scale: 8 x 350 ohm; 16 x 700 ohm
Scale channels: 1 or 2
Linearity: ±0.017 full scale

Circuit Protection:
RFI, EMI, ESD protection

Digital I/O:
Four

 Display:
Viewing area: 240 × 64 pixels, transmissive VGA liquid crystal display (LCD) with adjustable contrast

Keys/Buttons:
24 buttons, full keypad (alpha numeric)

Resolution:
Internal: 1,000,000 counts
Display: up to 100,000

Communications Ports:
Two RS-232 ports support up to 115,200 bps
20 mA
Ethernet port
Setpoint output

Annunciators:
PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero

Units of Measure:
Pounds, kilograms, grams, ounces

Prints:
Standard EPL label format; format is changeable to work with virtually any printer

 Battery (optional):
Type: Lithium-ion
Charge time: 6 to 8 hours
Charge cycles: 400 to 1,200
Estimated runtime: 24 to 32 hours with one 350 ohm load cell base

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C)

Operating Humidity:
85%

Physical Dimensions:
(L × W × H)
Indicator only
12.25 × 6.25 × 4.00 in
(311 × 159 × 102 mm)

Warranty:
Two-year limited

Approvals:
NTEP Certified CC 12-110
CE Marked
UL Listed
Measurement Canada AM-5918C
Model

Indicator,Counterpart Single A/D, RS-232, Ethernet, Multi-ranging Power Supply with US Power Cord and Packaging, Indicator,Counterpart Dual A/D, RS-232, Ethernet, Multi-ranging Power Supply with US Power Cord and Packaging, Indicator,Counterpart Single A/D, RS-232, Ethernet, Multi-ranging Power Supply with EU Power Cord and Packaging, Indicator,Counterpart Dual A/D, RS-232, Ethernet, Multi-ranging Power Supply with EU Power Cord and Packaging, Scale,CP-1 Counterpart 1 x 0.0001 lb, 7 x 5 in Platter, Multi-Range Adapter, US plug, Scale,CP-2 Counterpart 2 x 0.0002 lb, 9 x 6 in Platter, Multi-Range Adapter, US cord, Scale,CP-5 Counterpart 5 x 0.0005 lb, 13 x 11 in Platter, Multi-Range Adapter, US plug, Scale,CP-10 Counterpart 10 x 0.001 lb, 13 x 11 in Platter, Multi-Range Adapter, US plug, Scale,CP-25 Counterpart 25 x 0.002 lb, 13 x 11in Platter, Multi-Range Adapter, US plug, Scale,CP-50 Counterpart 50 x 0.005 lb, 13 x 11 in Platter, Multi-Range Adapter, US plug, Scale,CP-1 Counterpart Dual Channel, 1 x 0.0001 lb, 7 x 5 Platter, Multi-Range Adapter US Cord, Scale,CP-2 Counterpart Dual Channel, 2 x 0.0002 lb, 9 x 6 Platter, Multi-Range Adapter US Cord, Scale,CP-5 Counterpart Dual Channel, 5 x 0.0005 lb, 13 x 11 Platter, Multi-Range Adapter US Cord, Scale,CP-10 Counterpart Dual Channel, 10 x 0.001 lb, 13 x 11 Platter, Multi-Range Adapter US Cord, Scale,CP-25 Counterpart Dual Channel, 25 x 0.002 lb, 13 x 11 Platter, Multi-Range Adapter US Cord, Scale,CP-50 Counterpart Dual Channel, 50 x 0.005 lb, 13 x 11 Platter, Multi-Range Adapter US Cord, Scale,CP-50BM Counterpart Dual Channel, 50 lb x 0.01 lb, 12 in x 18 in, Multi-Range Adaptor US Power Cord, Scale,CP-100BM Counterpart, Dual Channel, 100 lb x 0.02 lb, 12 in x 18 in, Multi-Range Adaptor, US Power Cord, Battery OPT,CP Li-Ion, Cable,Multi Scale "Y" IQ9500 Counting Scale, CONN,Plug 14-Pin Male DIGI connector, Coverplate,Ethernet OPT Counterpart External Plate, Kit, Ethernet plug for welded cable, OPT,USB Host Card Counterpart USB Keyboard, RoHS Compliant, Keyboard,Microsoft USB Microsoft 600 USB Wired, Coverplate,DB9 Option 520, Counterpart Indicators., Coverplate, 14 Pin Connector. Counterpart Counting Scale Indicator., OPT,Wi-Fi Kit Counterpart Includes Antennae, Ethernet Board and access plate, Software, WeighVault for Counterpart (English), LIT,Technical Manual Counterpart Counting Scale Indicator (English), Bracket OPT,Counterpart CP Front-mount Bracket and Mounting Screws Kit For BenchMark Scales. S-XL Bases., Bracket Kit,OPT S-YC Counterpart Bracket And Mounting Screws, Cable,RS-232 5-Wire DB-9F to 6-position connector, Stand, Counterpart Indicator. Angled, Free Standing for Table Top., Power Supply Assy,12V 15W 1.25A, Universal Input (90-264 VAC) Desktop Switching with IEC-320_C14 connector and EMI/RFI Ferrite Clamp, Power Cord,Detachable 18 AWG,7-1/2' Long,SVT Cord Black
