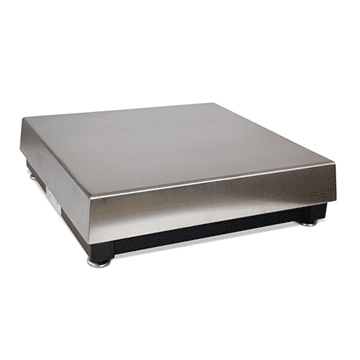

BenchMark® MS Mild Steel Bench Scale

$1,192.60$1,969.80

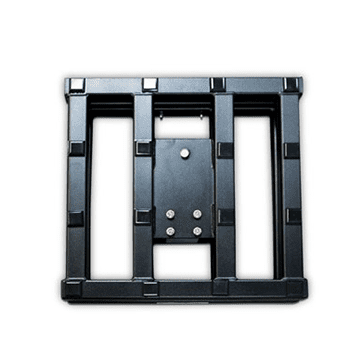

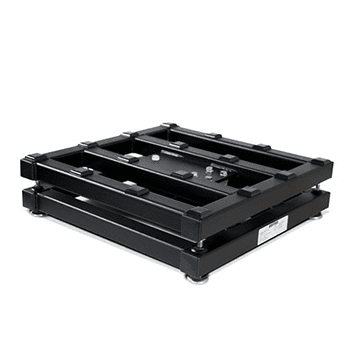

  • Painted mild steel frame with 304 stainless steel cover
  • Base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

Extremely Accurate Bench Scale Weighing

Ideal for dry environments, the BenchMark MS mild steel bench scale has a heavy-duty construction that provides ultimate durability, sensitivity and long life for a variety of weighing. Finished with a painted, mild steel tubular frame and 304 stainless steel cover, this model features aluminum, environmentally sealed load cells. Five standard platform sizes offer a wide variety of capacities. Custom platform sizes and capacities are available.

Guaranteed Safe Checkout

BenchMark Mild Steel Specifications

Load Cell, NTEP Certified:
IP66 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
150% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
Mild steel powder coated black

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Two-year limited

Approvals:
NTEP CC 95-072, Class III, 5,000 d
Measurement Canada AM-5082

Model

Scale,BENCHMARK BM1212-30 12x12x4-1/8 30 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1212-50 12x12x4-1/8 50 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1212- 100 12x12x4-1/8 100 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1218-50 12x18x4-1/8 50 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1218- 100 12x18x4-1/8 100 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1818-50 18x18x5-1/4 50 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1818- 100 18x18x5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1818- 150 18x18x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1818- 200 18x18x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1818- 250 18x18x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1818- 300 18x18x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1818- 500 18x18x5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1818-1K 18x18x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1824-50 18x24x5-1/4 50 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1824- 100 18×24-5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1824- 150 18x24x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1824- 200 18x24x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1824- 250 18x24x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1824- 300 18x24x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1824- 500 18×24-5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM1824-1K 18x24x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM2424- 100 24x24x5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM2424- 150 24x24x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM2424- 200 24x24x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM2424- 250 24x24x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM2424- 300 24x24x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM2424- 500 24x24x5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover, Scale,BENCHMARK BM2424-1K 24x24x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover
