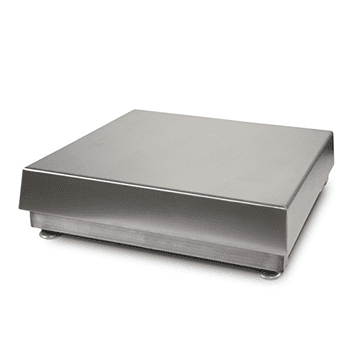

BenchMark™ HE Hostile Environment Bench Scale

$1,983.20$3,752.00

  • 304 stainless steel frame and cover
  • Base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

Bench Scale For A Hostile Environment

Starting with a stainless steel IP69K hermetically sealed load cell, the HE Series bench scale addresses the needs of hostile environment and washdown applications. Rice Lake’s BenchMark HE bench scale performs reliably through the most demanding tasks, with a base that’s specially engineered for overload protection. The HE Series design is available on almost any size or capacity.

Guaranteed Safe Checkout

BenchMark HE Specifications

Load Cell, NTEP Certified:
IP69K stainless steel, hermetically sealed

Output Impedance:
1,000 ohm

Maximum Overload:
150% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
AISI304L, glass bead blasted for even appearance

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Three-year limited
(includes water ingress)

Approvals:
NTEP CC 95-072, Class III, 5,000 d
Measurement Canada AM-5082
Load cell is FM approved

Model

Scale,BENCHMARK HE BM1218S-50 12x18x4 50 lb 10ft NTEP III SST, Scale,BENCHMARK HE BM1218S-100 12x18x4 100 lb 10ft NTEP III SST, Scale, BENCHMARK HE BM1818S-50 18x18x5-1/4 50lb 10ft NTEP III SST, Scale, BENCHMARK HE BM1818S-100 18x18x5-1/4 100lb 10ft NTEP III SST, Scale, BENCHMARK HE BM1818S-150 18x18x5-1/4 150lb 10ft NTEP III SST, Scale,BENCHMARK HE BM1818S-200 18x18x5-1/4 200lb 10ft NTEP III SST, Scale, BENCHMARK HE BM1818S-250 18x18x5-1/2 250lb 10ft SST, Scale, BENCHMARK HE BM1818S-300 18x18x5-1/2 300lb 10ft SST, Scale, BENCHMARK HE BM1818S-500 18x18x5-1/2 500lb 10ft SST, Scale, BENCHMARK HE BM1818S-1000 18x18x5-1/2 1000lb 10ft SST, Scale, BENCHMARK HE BM1824S-50 18x24x5-1/2 50lb 10ft NTEP III SST, Scale, BENCHMARK HE BM1824S-100 18x24x5-1/2 100lb 10ft NTEP III SST, Scale, BENCHMARK HE BM1824S-150 18x24x5-1/2 150lb 10ft NTEP III SST, Scale, BENCHMARK HE BM1824S-200 18x24x5-1/2 200lb 10ft NTEP III SST, Scale, BENCHMARK HE BM1824S-250 18x24x5-1/2 250lb 10ft SST, Scale, BENCHMARK HE BM1824S-300 18x24x5-1/2 300lb 10ft SST, Scale, BENCHMARK HE BM1824S-500 18x24x5-1/2 500lb 10ft SST, Scale, BENCHMARK HE BM1824S-1000 18x24x5-1/2 1000lb 10ft SST, Scale, BENCHMARK HE BM2424S-100 24x24x5-1/2 100lb 10ft NTEP III SST, Scale, BENCHMARK HE BM2424S-150 24x24x5-1/2 150lb 10ft NTEP III SST, Scale, BENCHMARK HE BM2424S-200 24x24x5-1/2 200lb 10ft NTEP III SST, Scale,BENCHMARK HE BM2424S-250 24x24x5-1/2 250lb 10ft SST, Scale, BENCHMARK HE BM2424S-300 24x24x5-1/2 300lb 10ft SST, Scale, BENCHMARK HE BM2424S-500 24x24x5-1/2 500lb 10ft SST, Scale, BENCHMARK HE BM2424S-1000 24x24x5-1/2 1000lb 10ft SST
