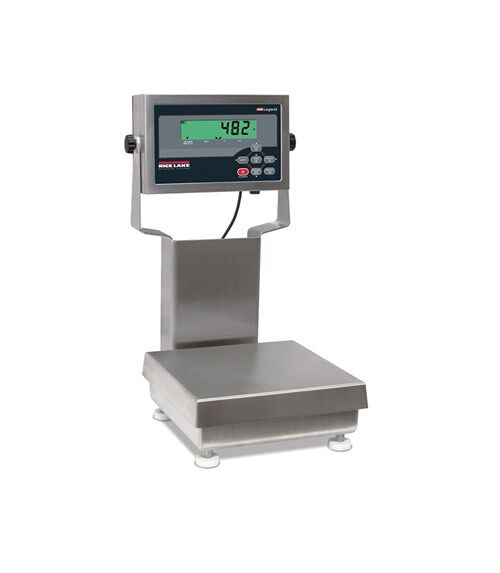

Ready-n-Weigh Bench Scale System CW-90B Scale Base 482 Indicator

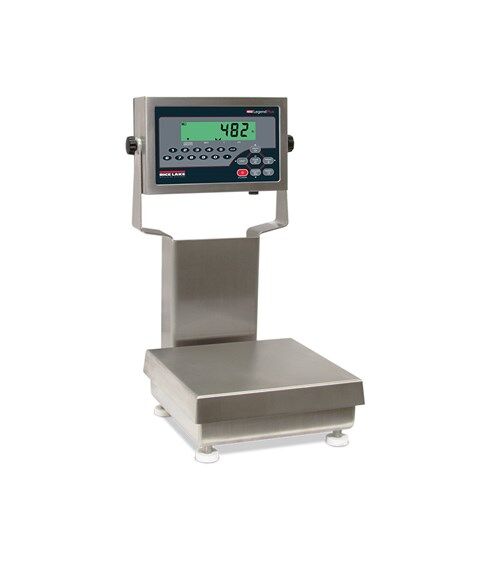

Ready-n-Weigh Bench Scale System CW-90B Scale Base 482 Plus Indicator
Ready-n-Weigh Bench Scale System CW-90B Scale Base 482 Indicator
Ready-n-Weigh Bench Scale System CW-90B Scale Base 482 Plus Indicator

Ready-n-Weigh Bench Scale System CW-90B Scale Base 482/482 Plus Indicator

$2,345.00 – $2,465.60

  • Package includes scale with IP67 aluminum environmentally sealed load cell
    with an indicator and 12-inch column
  • Factory calibrated with indicator setup and configured for 5,000 divisions
  • Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
  • AC power 100 to 240 VAC
  • LCD backlit indicator display for a variety of environments
  • Battery backed time and date
  • Standard RS-232 serial ports for connecting to a variety of peripherals

Complete Bench Scale Package

The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds.  Each scale package arrives factory calibrated for quick setup.

SKU: N/A Category: Tags: ,
Guaranteed Safe Checkout

CW-90B Bench Scale Specifications

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealedScale Construction:
304 stainless steel

Maximum Overload:
180% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

 Scale Frame:
AISI304L, straight line finish, Ra = 45 +/- 10Scale Cover:
AISI304L, straight line finish, Ra = 45 +/- 10

Cable Length:
34 in

 Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)Approvals:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082
Load cell is cFMus approved

Warranty:
Two-year limited

 482/482 Plus Indicator Specifications

Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity

Display:
LCD backlit display, transmissive/transflective 0.8 in (20 mm), six-digit, seven-segment

 Status Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

 Approvals:
NTEP CC 12-123
Measurement Canada AM-5892C
CE Marked
cULus Listed

Warranty:
Two-year limited
Model

Scale PKG, CW-90B-482 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST, Scale PKG, CW-90B-482 10×10 10 lb/5 kg with 12 inch column 115VAC SST, Scale PKG, CW-90B-482 10×10 25 lb/10 kg with 12 inch column 115VAC SST, Scale PKG, CW-90B-482 12×12 25 lb/10 kg with 12 inch column 115VAC SST, Scale PKG, CW-90B-482 12×12 50 lb/25 kg with 12 inch column 115VAC SST, Scale PKG, CW-90B-482 12×12 100 lb/50 kg with 12 inch column 115VAC SST, Scale PKG,CW-90B-482 Plus 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST, Scale PKG,CW-90B-482 Plus 10×10 10 lb/5 kg with 12 inch column 115VAC SST, Scale PKG,CW-90B-482 Plus 10×10 25 lb/10 kg with 12 inch column 115VAC SST, Scale PKG,CW-90B-482 Plus 12×12 25 lb/10 kg with 12 inch column 115VAC SST, Scale PKG,CW-90B-482 Plus 12×12 50 lb/25 kg with 12 inch column 115VAC SST, Scale PKG,CW-90B-482 Plus 12×12 100 lb/50 kg with 12 inch column 115VAC SST
